WHY SHOULD YOU HAVE A STAINLESS
STEEL CHAMBER, FRAME AND JACKET?

Some sterilizer companies will say that their chambers come standard with a stainless steel frame. However what good is a stainless steel chamber if the steel frame and jacket are made out of carbon steel?


As Metals Heat, they expand and contract...

It's basic science that as metals heat and cool, they are going to expand and contract. Different metals are also going to expand and contract at different rates. So this means that your chamber, frame and jacket are all going to be expanding and contracting at different rates and this can cause breaks in the welds.


Stainless Steel Means No Rust...

Having stainless steel jack, chamber and frame means no rust. Rust can build up in the chamber effecting the cleanliness of the steam and the items you are sterilizing. Rust can also greatly reduce the life span of your sterilizer and increase the amount of time and money spent on maintenance.


Chambers can be cleaned, but Jackets cannot...

While chambers can be cleaned of their rust residue, jackets cannot. This means that throughout the life of a traditional sterilizer, build-up is accumulating in the jacket, resulting in cold spots and impeded heat transfer, which can obviously impact a sterilizer's ability to dry the load. Inadequate drying results in longer cycle times.

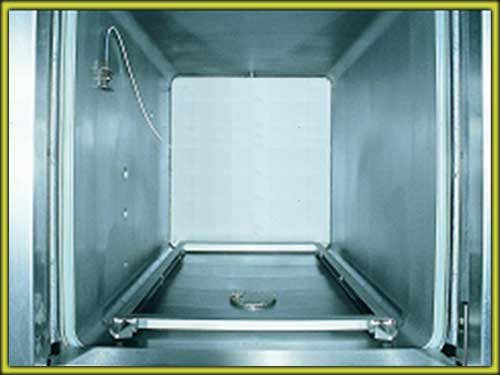

ss_chamber

Constructed in accordance with ASME Section VIII, Division 1, for unfired pressure vessels and so stamped for 45 psig/144° C Design Temperature and Full Vacuum. The chambers are rectangular in design and jacketed. The chamber is 316L stainless steel with fully welded construction. Steam baffles are positioned in the chamber to minimize wetting by condensate and ensure proper steam distribution within the chamber. The chamber is mechanically polished to 50 Ra.

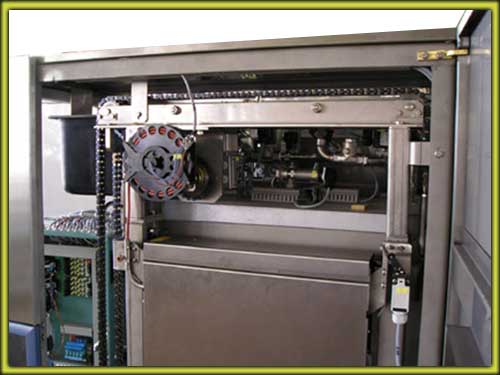

ss_frame

The sterilizer chamber is secured to a structural frame. The frame is constructed of 304 stainless steel. Adjustable screws at the base of the frame allow for leveling during installation.

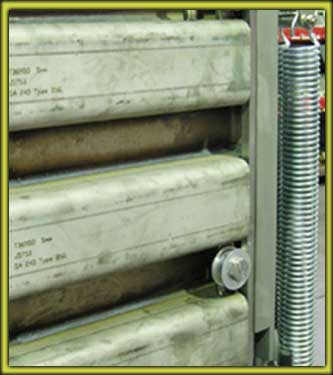

ss_jacket

The jacket is constructed of 316L stainless steel, is ASME stamped for 45 psig/144° C Design Temperature.
